系 統 | CPU | S700,Quad-core A53 SMP4,28nm |
RAM | 1GB | |
內存 | 8GB | |
操作系統 | Android 5.1.1 | |
顯 示 | LCD 屏 | 22"方形屏 |
分辨率 | 1920*1920 | |
可視區 | 394.56(H)x 394.56mm(V) | |
可視角度 | 89/89/89/89(上/下/左/右) | |
顯示模式 | 常黑,ADS,透射式,霧面 | |
對比度 | 1000:1 | |
亮度 | 400cd/m2 | |
屏幕比例 | 1:1 | |
網 絡 | WiFi | 2.4G WIFI 802.11b : DQPSK, DBPSK, CCK 802.11g/n : 64-QAM,16-QAM, QPSK, BPSK 802.11ac : 256-QAM, 64-QAM,16-QAM, QPSK, BPSK 5G WIFI 802.11a/n : 64-QAM,16-QAM, QPSK, BPSK 802.11ac : 256-QAM, 64-QAM,16-QAM, QPSK, BPSK |
以太網 | 100M網口(Mini RJ45) | |
藍牙 | Bluetooth V4.2 of 1, 2 and 3 Mbps | |
接 口 | 卡座 | 1個 PUSH-PUSH TF 卡座 |
Micro USB | USB OTG | |
Mini RJ45 | 1個 | |
USB | 1個 | |
媒體播放 | 視頻格式 | Support rich video format: AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP,DAT, VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS etc. H.265(HEVC)1080P 30fps,H.264(BP/MP/HP level 4.1,1920X1080@60fps) H.263(profile 3,1920X1080@60fps), S263(profile 3 1920X1080@60fps) MPEG-1(MP, 1920X1080@60fps),MPEG-2(MP,1920X1080@60fps) MPEG-4(ASP,1920X1080@60fps), Xvid(Home theater 1920X1080@60fps) MJPEG(baseline,1920X1080@60fps), ON2 (1920X1080@60fps) Divx(3.11,1280x720@60fps) S700 support H.265(HEVC)2160P 30fps |
音頻格式 | Support all format audio files: OGG, APE, FLAC, WAV, AMR, AIFF, MPC. Support multiple Sound Effect.. | |
圖片格式 | Support picture format: JPG、JPEG、BMP、GIF、PNG , maximum resolution to 30000*30000; | |
其 它 | VESA | 支持壁掛200-200mm |
語言 | 中英文等多語言操作 | |
工作溫度 | 0--50° | |
功率 | 36W | |
附 件 | AC電源線 | 電源適配器(12V3A&24V/2A) |

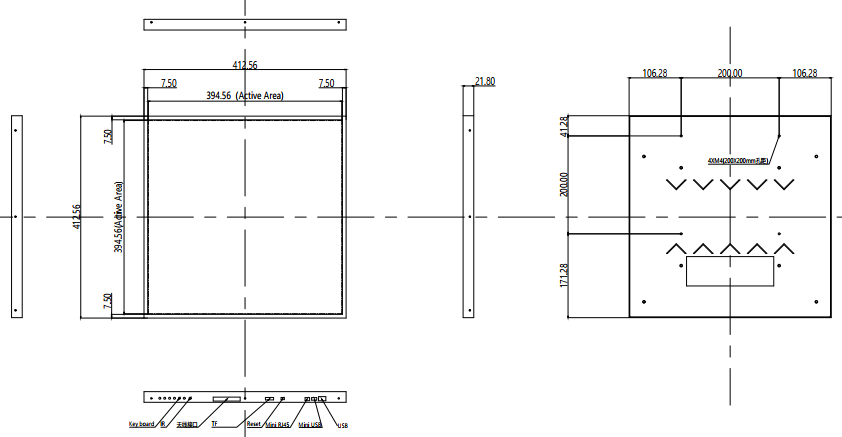

產品體積
單機尺寸 | 包裝尺寸 | Carton 1pcs/CTN | ||||||
L | W | H | L | W | H | L | W | H |
412.56 | 412.56 | 21.8 | 650 | 550 | 90 | 650 | 550 | 90 |
Net(kg) | 4.25 | Net(kg) | 1.49 | Net(kg) | 5.74 | |||
G.W | N/A |
